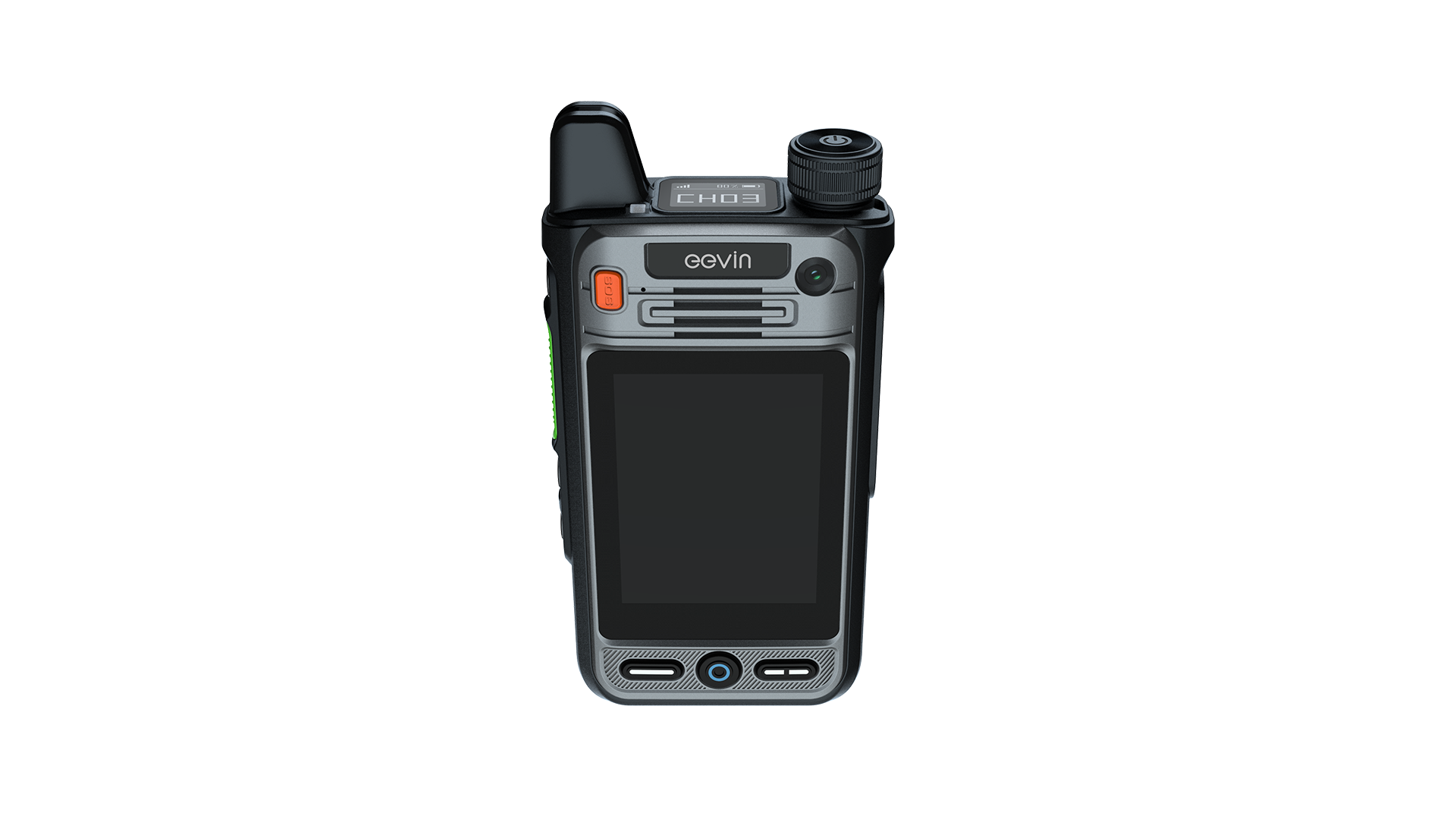

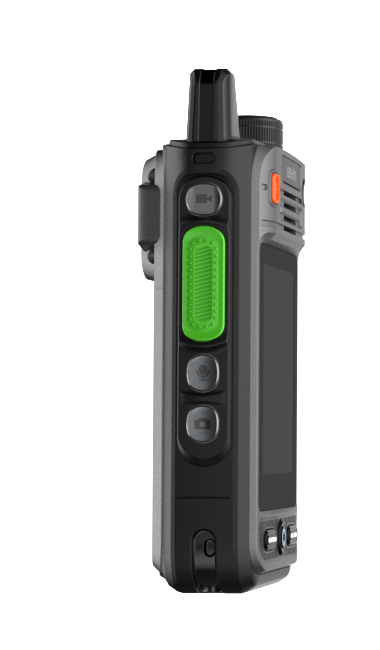

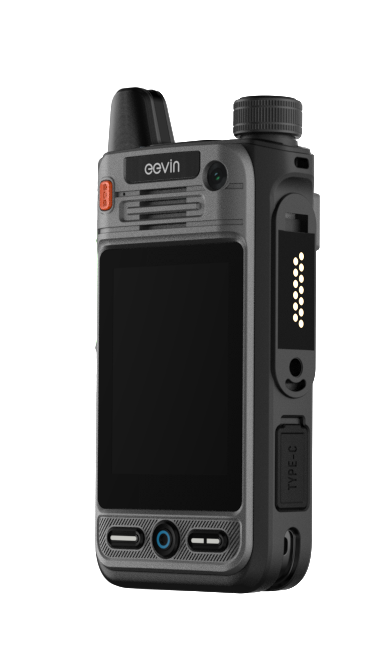

EV688 LTE Smart POC device with Body-worn camera
Top screen display
Convenient operation
| Dimensions/Size | 120.5*62*30.2mm |
|---|---|
| Battery capacity | 3200mAh polymer lithium battery,with a built-in small battery that supports uninterrupted recording for up to 10 minutes during battery replacement. |
| Communication network | 3G:WCDMA:B1/B2/B5/B8 TD-SDMA:B34/B39 4G:LTE-DD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B26/B28A&B LTE-TDD:B34/B38/B39/B40/B41 |
| Chip and system | Quad-core processor, 1.5GHz clock speed, equipped with Android 10.0 . |
| Memory | RAM: 1GB, ROM: 8GB, expandable up to 128GB storage. |
| SIM card slot | dual SIM dual standby. |
| Recording performance | Camera（Rear） 16MP ；Camera（Front） 2MP. |
| Display screen | Top screen：OLED 0.73-inch 128*88 Monochrome, Main screen：LCD2.4-inch, WVGA IPS screen， 240 (xRGB) x 320. |
| Intercom performance | 1W，Support MAX to 3W.Dual-microphone noise cancellation ，Add noise-reduction IC |
| Keypad/buttons | PTT Button，Power Button，Record button，Photo button，Video button，SOS Button，Home Button，Menu Button，Back Button. |
| Localization function/Positioning capability | GPS/AGPS/GLONASS/BEIDOU . |
| Wireless connectivity | WiFi: 2.4G/5G 802.1 a/b/g/n, Bluetooth BT4.2. |
| Expansion interface | Provides TYPE-C and M6 standard interfaces (13pin) for connecting external audio and video accessories. |
| Protection performance | IP67. |
| Member Information | |
|---|---|
| Address Book |
|
| Personnel Status and Location Information |
|
| Device Status |
|
| Voice Dispatch | |
| Group Call |
|
| Private Call |
|
| Temporary Group Call |
|
| Network Adaptive Function |
|
| Secure Encryption |
|
| One-Button Alarm |
|
| IP Two-Way Voice Call |
|
| IP Two-Way Video Call |
|
| IP Voice Conference |
|
| Call Command Center |
|
| Video Dispatch | |
| Video Push and Pull |
|
| Simultaneous Voice Intercom during Video Push and Pull |
|
| Network Adaptive Jitter |
|
| Video Recording Storage |
|
| Recording Playback |
|
| GIS Map Dispatch | |
| Display of Terminal Online and Offline Status |
|
| Terminal Positioning Supporting Pure GPS and Hybrid Positioning Simultaneously |
|
| GIS Map Monitoring |
|
| Real-Time Positioning and Tracking |
|
| Historical Trajectory Playback |
|
| Multimedia Messaging | |
| Intra-group Multimedia Messages |
|
| Image, Voice, and Video Sending |
|
| Image and Video Capture and Transmission |
|
| Broadcast Messages |
|
| Dispatch Console Information Query and Preview |
|
| Task Management | |
| Task Assignment |
|
| Task Feedback and Completion |
|
| Task Inspection and Verification |
|
| Workflow Applications | |
| Attendance Check-In and Check-Out |
|
